भारत सरकार भारतीय मात्स्यिकी सर्वेक्षण मत्स्य पालन विभाग
मत्स्य पालन, पशुपालन और डेयरी मंत्रालय

I A. 5 DEMERSAL RESOURCES SURVEY, ASSESSMENTAND MONITORING OF FISH STOCKS ALONG SOUTH EAST COAST BETWEEN LAT.10°N - 16°N.

Project Co-ordinator

Shri A. Tiburtius, Zonal Director

Project Components

• Exploratory survey of demersal resources using fish trawl in 100-300m depth.
• Monitoring of demersal resources using fish trawl and shrimp trawl in 30-100m depth.
• Exploratory survey using shrimp trawl in 30-300m depth.
• Exploratory survey using cephalopod trawl in 30-300m.

Period : April 2021-March 2022

Survey of Research Objectives

• Preparation of species inventory of demersal fin fish and shell fish resources.
• Estimation of abundance indices of demersal fishery resources and major components thereof with emphasis on silver bellies, decapterids, mackerel, barracuda, caranx spp. squids, cuttlefish, perches, lizard fish, sciaenids, threadfin breams, catfish, upenoids and bulls eye.
• Identifying spatio-temporal distribution pattern of the above resources.
• Study of biological aspects of important species.
• Stock assessment of important resources.
• Imparting training in fishing techniques and demonstrations of modern equipments on board to fishermen, fishing industry representatives and entrepreneurs.

Survey and Research Team

Project leader	Project Associates
	Scientists	Engineer
Dr. S. Ramachnadran, Sr. Fisheries Scientist	Dr. J. Jeyachandra Dhas Jr. Fisheries Scientist Dr. A. John Chembian, Jr. Fisheries Scientist Shri. Y. Tharumar Sr. Scientific Assistant Dr. Roshan Maria Peter Sr. Scientific Assistant.	Shri C. D. Rao, Mechanical Marine Engineer

Base of operation : Chennai
Vessel : M.F.V. Samudrika

Gear

• 27.5 m Fish trawl (FT)
• 30 m Shrimp trawl (ST)
• 36.2 m Cephalopods trawl (CT)
• Resources specific gear (to be made by using square type mesh in cod end)

Vessel Officers

Skipper : Vacant
Fishing Engineer : Shri C. Murugan, Chief Engineer, Gr. II (Gr. I, In-charge)

Survey Strategy

• Stratified random sampling.

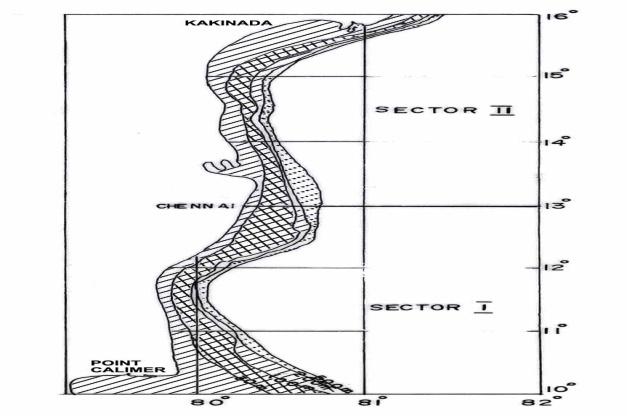

• The survey area to be divided in to two sector viz., Lat 10°N-13°N and Lat 14°N -16°N vessel to cover each sector in alternative cruise.
• In each cruise sampling should begin from the farthest Lat. as far as possible.
• Resources specific trawl fishing to be conducted simultaneously with regular
• survey in peak season of abundance of each resource.

Distribution of Sampling Effort

Particulars	Exploratory survey			Monitoring survey
Gear	FT	ST / Resources Specific trawl	CT	FT/ST
Depth zone (m)	100-300	30-300	30-300	30-100
Extend of area (km2)	9265	21205	21205	11940
No. of hauls	15	15	10	10

Operational target per cruise

Days out at sea : 20
Fishing days : 16
No. of hauls : 50
Duration of haul: 90 minutes

Survey area: Lat. 10°-16°N

Result reporting: As per Annexure – II

I. C.3 TUNA RESOURCES SURVEY USING MONOFILAMENT LONG LINING IN THE BAY OF BENGAL IN THE LAT BETWEEN 10°N AND 20°N.

Project Coordinator

Shri A. Tiburtius, Zonal Director

Project Component

Tuna resources survey using monofilament long lining in Bay of Bengal between Lat. 10°N - 20°N.

Period : April 2021- March 2022

Survey and Research Objectives

• Estimation of abundance indices of oceanic tuna and allied resources.
• Identifying spatio-temporal distribution pattern of the tuna and allied resources.
• Study of the biological parameters in respect of important species.
• Study of the oceanographic parameters.
• Stock assessment of important resources.
• Imparting training in fishing techniques and demonstrations of modern equipment on board to the fishermen, fishing industry representatives and entrepreneurs.

Survey and Research Team

Project leader	Project Associates
	Scientist(s)	Engineer
Dr. S. Ramachandran, Sr. Fisheries Scientist	Dr. J. Jeyachandra Dhas, Jr. Fisheries Scientist Dr. A. John Chembian, Jr. Fisheries Scientist Shri Y. Tharumar, Sr. Scientific Assistant. Dr. Roshan Maria Peter Sr. Scientific Assistant	Shri C. D. Rao, Mechanical Marine Engineer

Base of Operation : Chennai
Vessel : Matsya Drushti

Vessel Officers

Skipper : Shri Bhoopathi (Skipper In-Charge)
Fishing Engineer : Shri Stanley Welligton, CE.Gr.I (in-Charge)

Gear

Monofilament long line with 7 hooks per basket

Operational target per cruise

Days out at sea : 20
Fishing days : 12 /14/15
Hooks per set : 630

Distribution Sampling Effort

Sector	Region	Area	Months	No. of set per cruise
I	North East coast	Lat. 18°N-20°N	7,10	12
II	Central East coast	Lat. 14°N-18°N	6,9,12	14
III	South East coast	Lat. 10°N-14°N	5,8,11	15

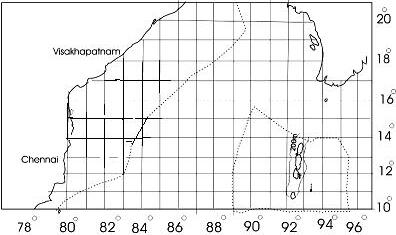

Survey area: Lat. 10°-20°N

Collection of Environmental Data

Besides the catch data and biological data being collected in longline survey, data on environmental parameters will be collected as follows:

• Salinity, Temperature and Depth (STD) data per day per set.
• Sea Surface Temperature (SST) data at every one hour interval from the commencement to completion of voyage.
• Data on current direction and speed, one observation every day (sets are to be made at specific depth).

Result reporting: As per Annexure – II

I C 4 : TUNA RESOURCES SURVEY USING MONOFILAMENT LONG LINING ALONG GULF OF MANNAR COAST.

Project Coordinator

Shri A. Tiburtius, Zonal Director

Project Components

Tuna resources survey using monofilament long lining in Gulf of Mannar Coast

Period: February & March, 2022

Survey and Research Objectives

• Estimation of abundance indices of oceanic tuna and allied resources.
• Identifying spatio-temporal distribution pattern of the tuna and allied resources.
• Study of the biological parameters in respect of important species.
• Study of the oceanographic parameters.
• Stock assessment of important resources.
• Imparting training in fishing techniques and demonstrations of modern equipment on board to the fishermen, fishing industry representatives and entrepreneurs.

Survey and Research Team

Project Leader	Project Associates
	Scientists	Engineer
Dr. S. Ramachandran, Sr. Fisheries Scientist	Dr. J. Jeyachandra Dhas, Jr. Fisheries Scientist Dr. A. John Chembian, Jr. Fisheries Scientist Shri. Y. Tharumar, Sr. Scientific Assistant. Dr. Roshan Maria Peter Sr. Scientific Assistant.	Shri C. D. Rao Mechanical Marine Engineer

Base of Operation : Chennai ( If needed the vessel will be operating from Kochi Zonal Base)
Vessel : Matsya Drushti

Gear

Gear : Monofilament long line with 7 hooks per basket

Vessel Officers

Skipper - Shri Bhoopathi (Skipper In-Charge)
Fishing Engineer - Shri. Stanley Wellington

Physical Targets per Cruise

Days out at sea : 20
Fishing days : 12
Hooks per set : 630

Distribution Sampling Effort

Sector	Region	Months	No. of set per cruise
I	Gulf of Mannar Coast	2,3	12

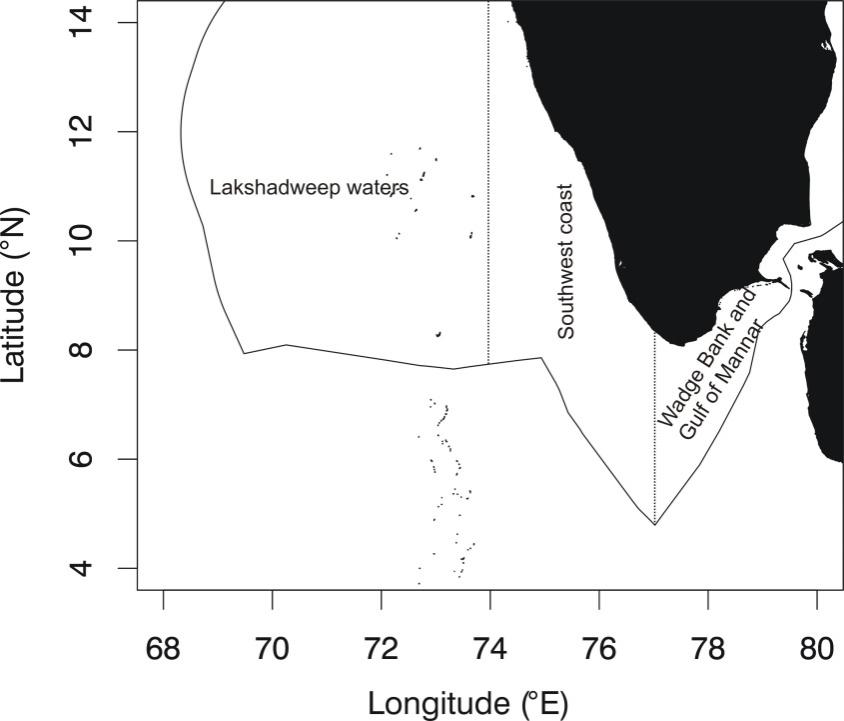

Survey area

Collection of Environmental data

Besides the catch data and biological data being collected in long line survey, data on environmental parameters will be collected as follows:

• Salinity, temperature and Depth (STD) data per day per set.
• Sea surface Temperature (SST) data at every one hour interval from the commencement to completion of voyage.
• Data on current direction and speed, one observation every day (sets are to be made at specific depth).

Result reporting: As per Annexure – II

I.E. 5 ANNUAL PLANNED MAINTENANCE PROGRAMME FOR SAMUDRIKA- 2021-21

Description	April 21	May21	June21	July21	Aug21	Sep21	Oct21	Nov21	Dec21	Jan 22	Feb 22	Mar 22
Dry docking
Main Engine	Main Engine Crank Shaft repair works/ major overhauling/ awaiting for spares from OEM
Aux. Engine (P)	O
Aux. Engine (S)		O
Aux. Engine (H)
Generator (P)				#							#
Generator (S)			#							#
Generator (H)
Ref. Compr-I						#						#
Ref. Compr-II				O

O – Overhauling, # – Inspection & Minor Repairs.

I.E.11 ANNUAL PLANNED MAINTENANCE PROGRAMME FOR MATSYA DRUSHTI- 2021-22

Description	Apr 21	May 21	Jun 21	Jul 21	Aug 21	Sep 21	Oct 21	Nov 21	Dec 21	Jan 22	Feb 22	Mar 22
Dry docking	///SSS
Main Engine										O
Aux. Engine (P)						O
Aux. Engine (S)								O
Aux. Engine (H)					#
Generator (P)			#							#
Generator ( S)		#							#
Generator (H)			#								#
Ref. Comp 1				O
Ref. Comp 2					O
Provision Room Compressor						#
Ref. Compressor-Iv A/C								#

O – Overhauling, #– Inspection & Minor Repairs ///SSS- Dry-docking/Afloat Repairs
